pfodGUIdesigner

Features pfodGUIdesigner

pfodGUIdesigner for pfodApp (www.pfod.com.au)pfod™ (Protocol For Operations Discovery)See the tutorial athttps://www.forward.com.au/pfod/pfodGUIdesigner/index.htmlThere are two free companion app for pfodApphttps://www.forward.com.au/pfod/pfodGUIdesigner/index.htmlandhttps://www.forward.com.au/pfod/pfodDesigner/index.htmlBoth these free apps only generate the Arduino code.

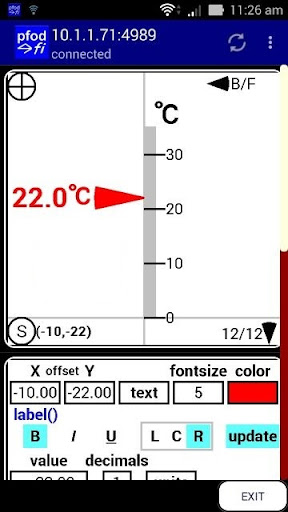

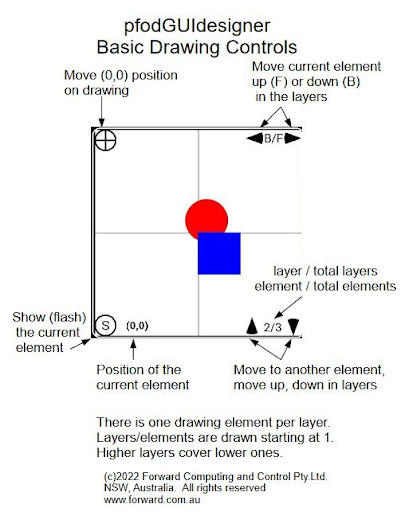

You need to purchase pfodApp to actually connect to the ArduinopfodDesignerV2 to design menus/charts and generate Arduino code for a wide variety of boards and pfodGUIdesigner to design interactive GUI components, buttons, sliders, gauges etc and generate Arduino code.This free Android app provides a drawing package where you can add dwg primatives to build an interactive GUI component.It then generates the Arduino code need to display and interact with your component on pfodApp.The dwg primatives are:-rectangle, line, circle, arc and label, and touchZones which respond to the users touch.After you size and position the touchZone, you can associate actions with it that give the user immediate feedback as soon as they touch the screen before the associated cmd is send back to the pfodDevice (the microprocessor).You can also trigger a popup dialog box to open when the user touches that zone, so that the user can enter text to be sent to the pfodDevice (the microprocessor)When you have finished and tested your design, pfodGUIdesigner will generate the Arduino code classes to implement that GUI component and test code to display the component on pfodApp.You can then add that object to a pfodApp menu drawing item and position and scale the component as needed.See a detailed tutorial at https://www.forward.com.au/pfod/pfodGUIdesigner/index.htmlpfodGUIdesigner generates Arduino test code for a number of boards, ESP32, ESP8266, nRF52832, Nano 33 etc.You can use pfodDesignerV3 to generate pfodApp connection code for wide variety of other boards not covered by pfodGUIdesigner.Note about pfodGUIdesigner app code:-----------------------------------------------All pfodGUIdesigner is just an instance of pfodApp permanently connected to the GUI designer back end.
